The Ruler 2.4 GHz
Product number:
H10009
Product information "The Ruler 2.4 GHz"
The Ruler (2.4 GHz) to rule RF all.

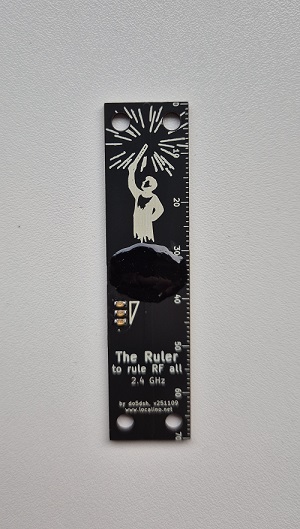

The Ruler is a passive batteryless device that displays RF energy at 2.4 GHz, for example to verify if there is RF power output from QO-100 Upconverter-H and the connected antenna.
Application
Display of 2.4 GHz signals and verification of a QO-100 setup or just for fancy illumination of the own antenna to show your neighbours that you are at work. You can also verify that your WiFi router transmits or show the leakage of your microwave oven.
Features
- passive RF sensing and display

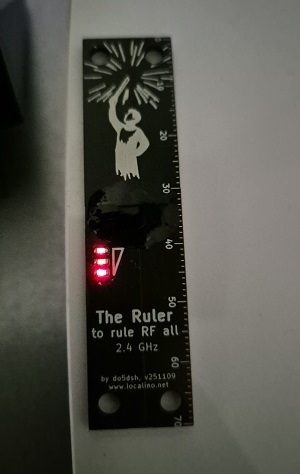

- 3 display stages (low, mid and high)
- requires only a few mW to start glowing ( ~3-5 mW)
Caution
Maximum input power levels must be taken care of! High power can destroy the device (exact number to be measured). The device has been tested to operate with up to 10W output power from an Localino QO-100 Upconverter H and a connected helix antenna at very short distance (few centimeters).
Maximum input power levels must be taken care of! High power can destroy the device (exact number to be measured). The device has been tested to operate with up to 10W output power from an Localino QO-100 Upconverter H and a connected helix antenna at very short distance (few centimeters).
Delivery
- The Ruler PCB, fully tested
Demo
This short video clips demonstrates how to use The Ruler and test your QO-100 setup end-to-end.
