QO-100 Single Cable Connector
Product number:
H10006
Product information "QO-100 Single Cable Connector"
QO-100 Single Cable Connector

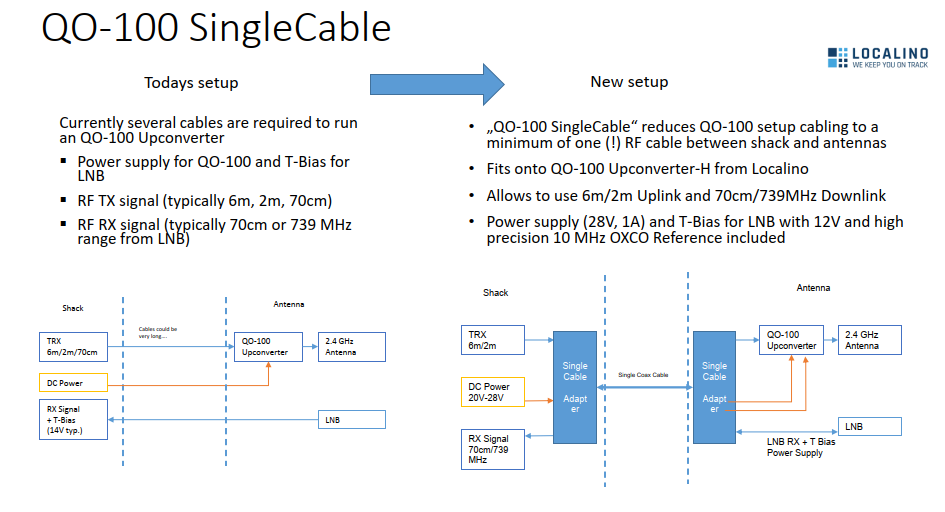

Instead of running dozens of cables from your shack to an QO-100 Upconverter this Single Cable connector reduces the cabling to a single RF cable.

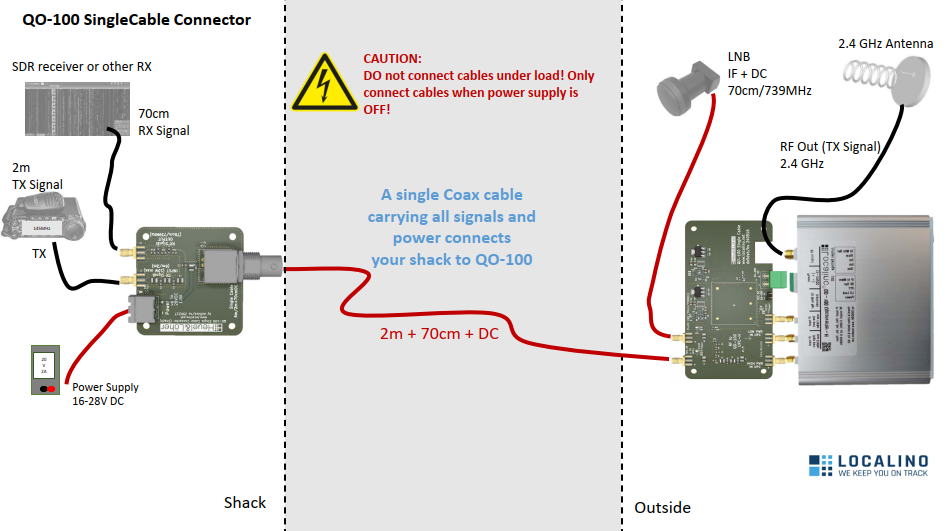

This unit consists out of two PCBs. One needs to be installed in the shack which combines TX/RX/Power to a single cable. The other PCB needs to be installed at the QO-100 Upconverter and separates all signals into power supply for the Upconverter, TX, RX and LNB power supply.
Features
- QO-100 SingleCable reduces QO-100 setup cabling to a minimum of one (!) RF cable between shack and antennas
- Fits on QO-100 Upconverter-H from Localino
- Allows to use 6m/2m Uplink and 70cm/739MHz Downlink (10m Input is
possible, but slightly higher transfer loss)
- Power supply (28V, 1A) for QO-100 UC and 5V for OXCO and T-Bias for LNB with 12V

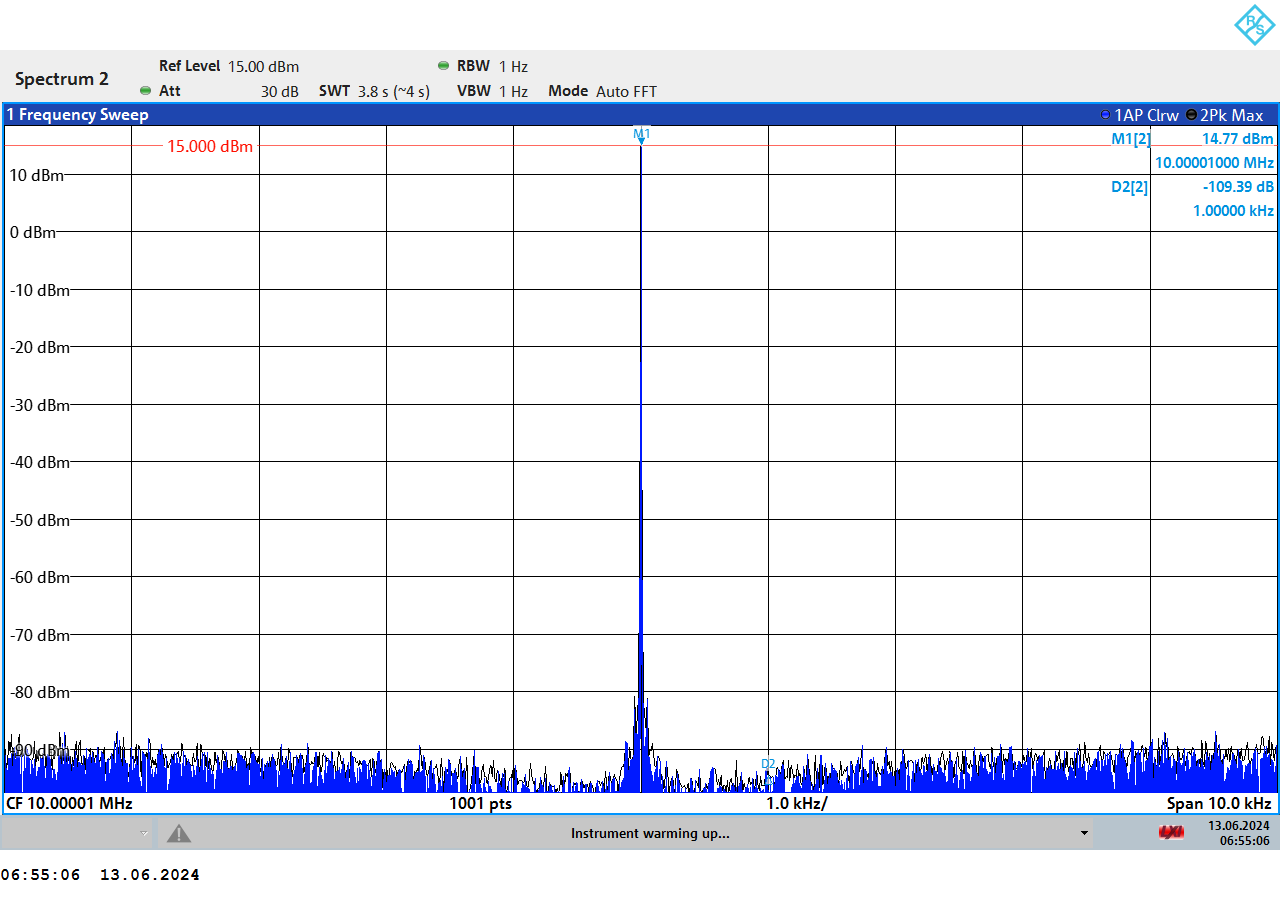

- high precision 10 MHz OXCO Reference included with 110 dBc
Technical Data
|
Article name |
QO-100 SingleCable |
|
Brand |
Localino |
|
Supply voltage |
18V – 28V |
|
Current consumption (standby, typ.) |
< 250mA @ 20V |
|
Current consumption (TX with Localino QO-100 UC-H, typ.) |
up to 1000mA at 28V |
|
Dimensions (PCB at Upconverter) W x H |
100 x 50 mm |
|
Dimensions (PCB Shack) W x H |
50 x 50 mm |
|

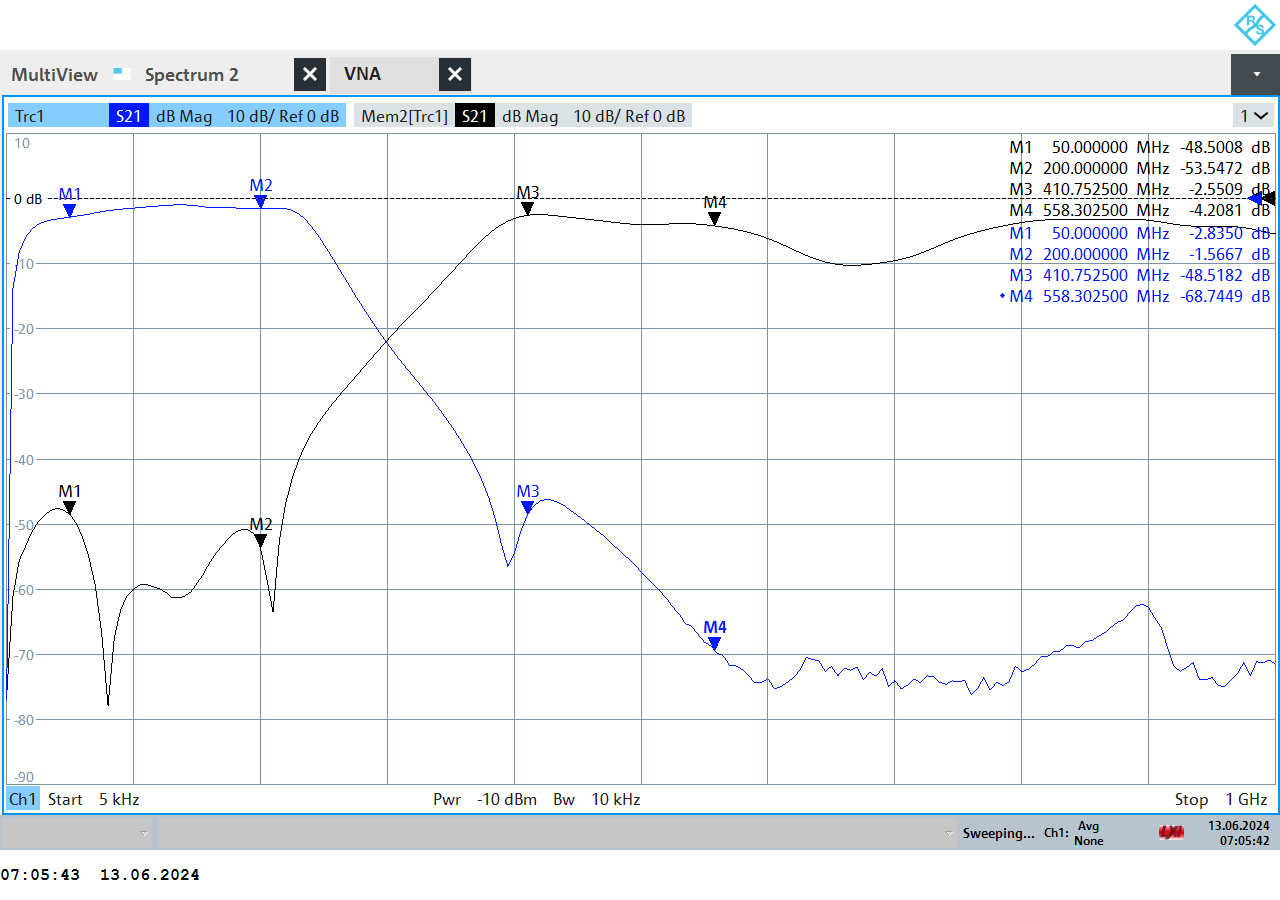

Frequency output (from LNB) |
400 MHz -1 GHz (designed for 70cm) |
|
Frequency inputs (from TRX) |
27 MHz - 230 MHz (designed for 6m/2m) |
|
HF connector types |
SMA (at Upconverter) / SMA and BNC (at Shack) |
Caution
Take care which cable goes where. Some outputs (like the LNB output) has T-bias 12V voltage.
Maximum input power levels must be taken care of! Measure your power level at the IF Input of the Upconverter-H before operation (your transceiver TX power at the end of the cable).
Delivery
- Receiver PCB (at QO-100 Upconverter)
- Transmitter PCB (in Shack)
