New Packet Radio NPR-H 3.0 (2m)
Product number:
H10008
Product information "New Packet Radio NPR-H 3.0 (2m) "
New Packet Radio Modem Version 3.0
for long-range 2m band HAMNET connections
What is new in Version 3.0?

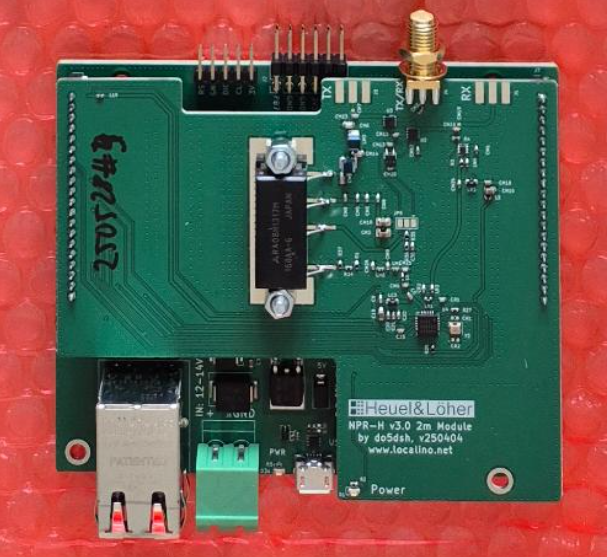

- modular design for 70cm, 2m and 23cm RF NPR-H 3.0 boards (baseband board + selectable RF board)
- new Microcontroller STM32F4 with more power
- ported and updated firmware with bugfixes and improvements (USB bootloader for fw updates, watchdog, listen before talk feature, interrupt handling, fixed race conditions)
- compatible with F4HDK firmware/master/client nodes
All-in-one Hardware
- Up to 7 Watts output power @ 2m
- SRAM 1024K
- Low noise amplifier and TRX
- separated RX and TX possible by small HW adaptions / adding SMA connectors (e.g. to drive additional PAs without TX/RX switch)
- Raw datarate: 110 kbps to 1 Mbps (see your local frequency regulations)
- Successor of NPR-H 1.0 and NPR-H 2.0
- Fits into standard commercial aluminium enclosure
- Design by DO5DSH, Ortsverein O28
Technical Specification
| Output Power: | +36 .. +38 dBm typ. |
| LNA Gain: | 18 dB |
| RF Connector: | SMA |
| Frequency Range: | 144-146 MHz, optimized for 2m ham radio band |
| Power consumption | 215mA @ 13.8V, up to 2A in TX |
| Power supply | 12V -16V DC |
| Enclosure | Designed for AKG 105 series |
| Dimensions: | 105x80x26mm |
Delivery
- New Packet Radio Modem NPR-H 3.0 - baseband board, flashed, tested and pre-configured.

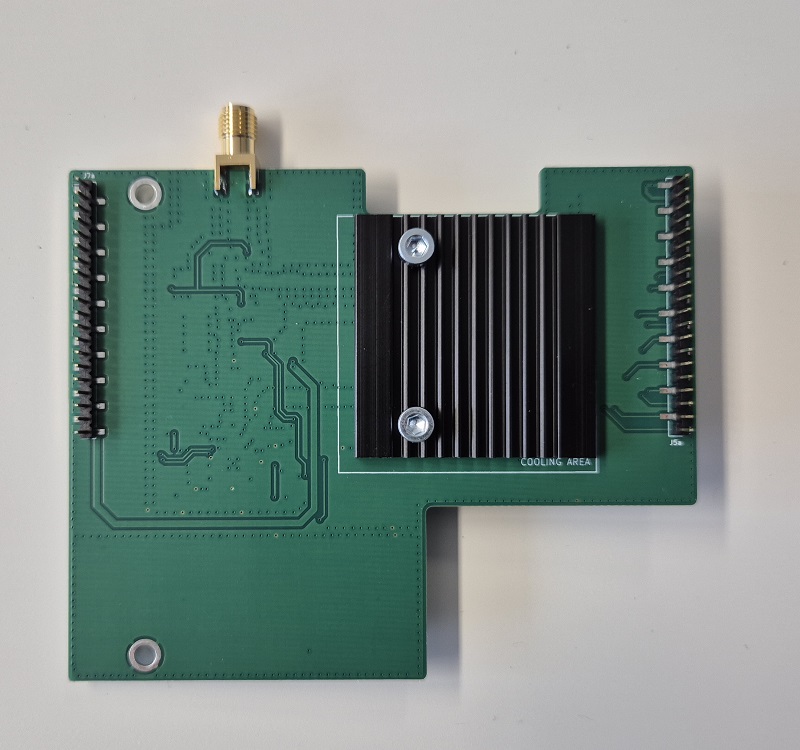

- New Packet Radio Modem NPR-H 3.0 - 2m RF board incl. power amplifier
- Enclose not included - please order separately.
